A linear guideway allows a type of linear motion that utilizes rolling elements such as balls or rollers. By using re-circulating rolling elements between the rail and the block, a linear guideway can achieve high precision linear motion.

Advantages and Features of HIWIN Linear Guideways:high positional accuracy, long life with high motion accuracy, High speed motion is possible with a low driving force, equal loading capacity in all directions, easy installation, easy lubrication, interchangeability.

  • You've just added this product to the cart:

    HIWIN AG series Angle Linear Guideway

    0 out of 5

    HIWIN AG series Angle Linear Guideway

    Price: Contact

    More compact design
    – Eliminates fasterner palte for saving equipment weight and increasing work space.

    High positional accuracy
    – Two rails are machined with precision in relative straightness. Extremely high accuracy in orthogonality is achieved.

    High torsional rigidity
    – The rigidity of AG block is 50% higher than of a combination of two HG blocks secured together back-to-back with bolts.

  • You've just added this product to the cart:

    HIWIN CG Series Superior Rolling Moment with Cover Strip Linear Guideway

    0 out of 5

    HIWIN CG Series Superior Rolling Moment with Cover Strip Linear Guideway

    Price: Contact

    FEATURE
    Self-aligning capability
    By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors dueto surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements andthe shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easyinstallation.

    Interchangeability
    Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range,which means that any blocks and any rails in a specific series can be used together while maintaining dimensionaltolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.

    High rigidity in all four directions
    Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radialand lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and thegroove raceway allowing large permissible loads and high rigidity.

  • You've just added this product to the cart:

    HIWIN E2 Series Self lubrication Kit for Linear Guideway

    0 out of 5

    HIWIN E2 Series Self lubrication Kit for Linear Guideway

    Price: Contact

    FEATURE

    Cost reduction

    Save costs by reducing oil usage and maintenance. Clean and environmental friendly: Optimized oil usage prevents leaking, making it the ideal solution for clean working environments.

    Long lasting and low maintenance: Self-lubricating block is maintenance free in most applications.

    No installation limitations

    The linear guideway can be lubricated by E2 self-lubricating module irrespective of mounting directions.

    Easy to install and remove

    The cartridge can be added or remove from the block even when the guideway is installed on a machine.

    Different oil can be used

    The replaceable oil cartridge can be refilled with any approved lubrication oil depending on different application environments.

    Applications for special environments

    Sealing grease into the block leads to better lubrication effects especially in dusty, or wet environments.

    APPLICATIONS

    utomation machinery Manufacturing machinery

    Injection molding, printing, paper manufacturing/converting, textiles sewing/weaving, food processing, wood.

    cutting/finishing Electronic machinery

    Semiconductor manufacturing, robotics, X-Y table, measuring and inspection equipments.

    Other equipment

    Medical X-ray/MRI/CAT- scan, transportation, construction.

  • You've just added this product to the cart:

    HIWIN EG Series Low Profile Ball Type Linear Guideway

    0 out of 5

    HIWIN EG Series Low Profile Ball Type Linear Guideway

    Price: Contact

    FEATURE

    EG series linear guideway is possessed with high load capacity and high rigidity because of the four rows design.

    It also features the same load in four directions and self-aligning capability to absorb installation-error which can achieve high accuracy.Besides, the lower assembly height and the shorter length make the EG series more suitable for the high-speed automatic machines and the applications where space limit is considered.

  • You've just added this product to the cart:

    HIWIN HG Series Heavy Load Ball Type Linear Guideway

    0 out of 5

    HIWIN HG Series Heavy Load Ball Type Linear Guideway

    Price: Contact

    FEATURE
    Self-aligning capability
    By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors dueto surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements andthe shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easyinstallation.

    Interchangeability
    Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range,which means that any blocks and any rails in a specific series can be used together while maintaining dimensionaltolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.

    High rigidity in all four directions
    Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radialand lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and thegroove raceway allowing large permissible loads and high rigidity.

  • You've just added this product to the cart:

    HIWIN MG Series Miniature Linear Guideway

    0 out of 5

    HIWIN MG Series Miniature Linear Guideway

    Price: Contact

    FEATURE
    MG
    The MG Series with tiny and light weight design is suitable for miniature equipment. All materials are special grade of stainless steel and alloy steel for anti-corrosion ability. Gothic arch contact design has high rigidity and accuracy characteristic in all directions. Steel balls are constrained by miniature retainer so without loosing balls when remove the block MG Series. The design of enlarged width, MGW Series, has increased capacity of moment load. Gothic arch contact design has high rigidity characteristic in all directions. Steel balls are constrained by miniature retainer so without loosing balls when removing the block away from the rail. All metal components are made of stainless steel for anti-corrosion ability.

    MG-O
    The MG-O recirculation system uses integrated design, the recirculation part is made by resin. Reduced about 20% weight. This design can reach smoother motion performance. Block, rail and stainless components such as ball and retainer, which provides excellent resistance to corrosion. Small and light weight makes MG-O suitable for miniaturized machinery. MG-O series can be used in many fields, such as semiconductor equipment, robotics, measuring equipment, office automation equipment, and the other slider machinery. MG-O is suitable for limited space installation.

  • You've just added this product to the cart:

    HIWIN PG Series Positioning Linear Guideway

    0 out of 5

    HIWIN PG Series Positioning Linear Guideway

    Price: Contact

    FEATURE

    The additional components are completely internal, thus saving installation space. Maintains high rigidity as well as high accuracy. Both sensor and magnetic strip are protected from harmful external extremities such as dust and iron chips.

    Non-contact measuring sensor can achieve longer life. Can measure distances up to 30M. Can withstand humid, and high-temperature environments in oily, dusty, and high vibration applications.

    High resolution. Easy to install.

    APPLICATIONS

    Machine tools Manufacturing machinery

    Injection molding, printing, paper manufacturing/converting, textiles sewing/weaving, food processing, wood cutting/finishing.

    Injection molding, printing, paper manufacturing/converting, textiles sewing/weaving, food processing, wood cutting/finishing.

    Semiconductor manufacturing, robotics, X-Y table, measuring and inspection equipments.

    Other equipment

    Medical X-ray/MRI/CAT- scan, transportation, construction.

  • You've just added this product to the cart:

    HIWIN QE Series Quiet Linear Guideway

    0 out of 5

    HIWIN QE Series Quiet Linear Guideway

    Price: Contact

    FEATURE

    The development of HIWIN-QE linear guideway is based on a four-row circular-arc contact. The HIWIN-QE series linear guideway with SynchMotionTM Technology offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the HIWIN-QE linear guideway has broad industrial applicability. In the hightech industry where high speed, low noise, and reduced dust generation is required, the HIWIN-QE series is interchangeable with the HIWIN-EG series.

  • You've just added this product to the cart:

    HIWIN QH Series Quiet Linear Guideway, with SynchMotion Technology

    0 out of 5

    HIWIN QH Series Quiet Linear Guideway, with SynchMotion Technology

    Price: Contact

    FEATURE

    Low Noise Design With SynchMotion TM technology, rolling elements are interposed between the partitions of SynchMotion TM to provide impoved circulation.

    Due to the elimination of contact between the rolling elements, collision noise and sound levels are drastically reduced.

    Self-Lubricant Design The partition is a grouping of hollow ring-like structures formed with a through hole to facilitate circulation of the lubricant. Because of the special lubrication path design, the lubricant of the partition storage space can be refilled. Therefore, the frequency of lubricant refilling can be decreased.

    The QH-series linear guideway is pre-lubricated. Performance testing at a 0.2C (basic dynamic load) shows that after running 2,500km no damage was apparent to either the rolling elements or the raceway.

    Smooth Movement In standard linear guideways, rolling elements on the load side of the guide block begin rolling and push their way through the raceway.When they contact other rolling elements they create counter-rotational friction. This results in a great variation of rolling resistance.The QH linear guideway, with SynchMotion TM technology prevents this condition. As the block starts to move, the rolling elements begin rolling consecutively and remain separated to prevent contact with one another thus keeping the element’s kinetic energy extremely stable in order to effectively reduce fluctuations in rolling resistance.

    High Speed Performance The Hiwin-QH series offers excellent high-speed performance due to the partitions of the SynchMotion TM structure.They are employed to separate the adjacent balls thereby resulting in low rolling traction and the metallic friction between adjacent balls is eliminated.

    APPLICATIONS

    Especially for the high-tech industries in which high speed, quiet, and low dust environment are required.

  • You've just added this product to the cart:

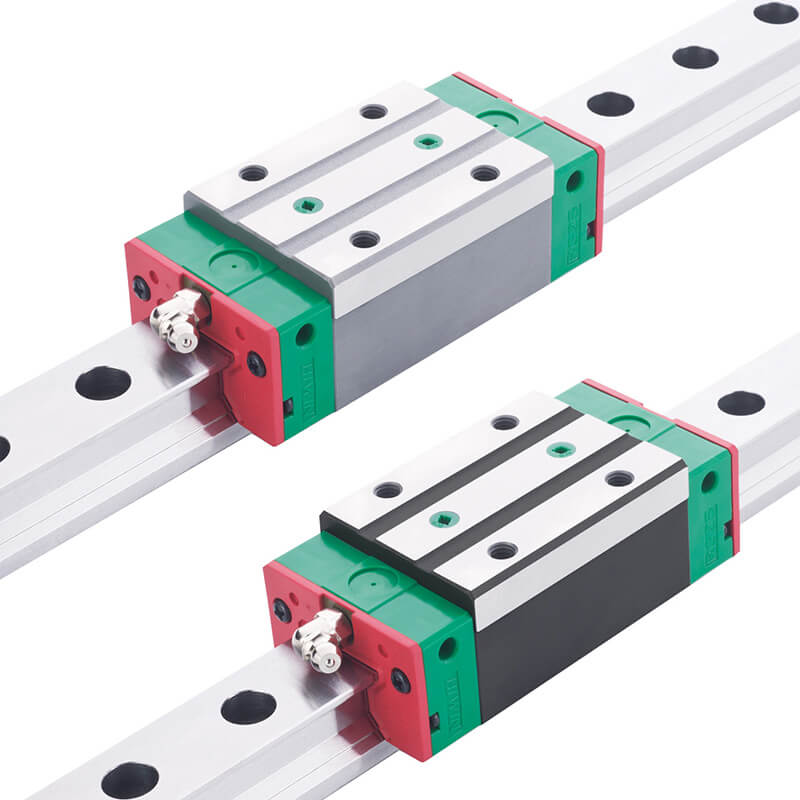

    HIWIN QR Series Quiet Roller Type Linear Guideway

    0 out of 5

    HIWIN QR Series Quiet Roller Type Linear Guideway

    Price: Contact

    FEATURE

    Smooth Movement In standard linear guideways, rolling elements on the load side of the guide block begin rolling and push their way through the raceway. When they contact other rolling elements they create counter-rotational friction. This results in a great variation of rolling resistance. The QR linear guideway, with SynchMotionTM technology prevents this condition. As the block starts to move, the rolling elements begin rolling consecutively and remain separated to prevent contact with one another thus keeping the element’s kinetic energy extremely stable in order to effectively reduce fluctuations in rolling resistance.

    Low Noise Design With SynchMotionTM technology, rolling elements are interposed between the partitions of SynchMotionTM to provide improved circulation. Due to the elimination of contact between the rolling elements, collision noise and sound levels are drastically reduced.

    Super high load capacity in linear guideway, with the four rows of rollers arranged at a contact angle of 45-degrees, the QR series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. The QR series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.

    The QR series is a type of linear guideway that uses rollers as the rolling elements.Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.

    APPLICATIONS

    Especially for the industries in which high speed, low noise, and high rigidity environment are required.

  • You've just added this product to the cart:

    HIWIN QW Series Wide Rail Linear Guideway

    0 out of 5

    HIWIN QW Series Wide Rail Linear Guideway

    Price: Contact

    FEATURE

    The HIWIN QW series linear guideway with SynchMotionTM Technology possesses all the advantages of the WE series, which features high moment rigidity and is suitable for single rail or space saving applications. With the SynchMotionTM technology it also provides quieter and smoother movement, superior lubrication, and longer service life.

  • You've just added this product to the cart:

    HIWIN RG Series High rigidity Roller Type

    0 out of 5

    HIWIN RG Series High rigidity Roller Type

    Price: Contact

    FEATURE

    The new RG series from Hiwin features a roller as the rolling element instead of steel balls. The roller series offerssuper high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elasticdeformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higherload capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.

    Optimal design

    FEM analysis was performed to determinethe optimal structure of the block and therail. The unique design of the circulation pathallows the RG series linear guideway to offersmoother linear motion.

    Super high rigidity

    The RG series is a type of linear guideway that uses rollers asthe rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a rollerand a ball with equal volume.

    Super high load capacity

    With the four rows of rollers arranged at a contact angle of45-degrees, the RG series linear guideway has equal loadratings in the radial, reverse radial and lateral directions. TheRG series has a higher load capacity in a smaller size thanconventional, ball-type linear guideways.

    Operating life increased

    Compare with the ball element, the contact pressure ofrolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RGseries offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

  • You've just added this product to the cart:

    HIWIN SE Series Metallic End Cap Linear Guideway

    0 out of 5

    HIWIN SE Series Metallic End Cap Linear Guideway

    Price: Contact

    FEATURE

    Well temperature resistant ability. Service temperature under 150℃ and instance temperature can up to 200℃.

    APPLICATIONS

    Semiconductor equipment、Heat treatment equipment、Vacuum using equipment (without vapor dispersion from plastic or rubber at high temperature)

  • You've just added this product to the cart:

    HIWIN WE Series Four Row Wide Rail Type Linear Guideway

    0 out of 5

    HIWIN WE Series Four Row Wide Rail Type Linear Guideway

    Price: Contact

    FEATURE

    The WE series linear guideways are designed with contact points at 45 degrees. They can absorb most installation errors due to their self-aligning capability while achieving the customer’s high accuracy demands. The WE series incorporates a wide rail which allows the guideway to be rated for high loads, moments, and rigidity. For single rail applications, the WE series offers a low profile with a low center of gravity which is ideal for applications where space is limited and high moment ratings are required.

    APPLICATIONS

    Automation equipment、Transportation equipment、Precision Measuring equipment、Semi-conductor equipment、Blow Molding machines、Single Axis Robot – Robotics
